We provide standard and customized liquid level sensors (LLS) that measure discrete liquid levels by using ultrasonic technology. The configuration is decided by process requirements and ampoule type. With Exentec’s expertise, our level sensor can operate in high-temperature and high-density/viscosity environments to support process and material technology needs:
• Discrete level sensor probes up to 8 points
• High liquid viscosity/density capability
• High temperature capability, models up to 200° C
• TC and RTD integration capabilities
Our liquid level sensors and control boxes are popular in the semiconductor, pharmaceutical and LED industries.
Wet Process Options
Wet Process Options
- Wetted surfaces 316 L stainless
- Wetted surfaces electropolished to 10 Ra max
- Pressure rated up to 300 psi
- ±1.5 mm trigger points at each discrete level
- ±0.75 mm is typical repeatability of trigger points
- Lowest trigger point is 0.15” from bottom of sensor
- Customizable setpoints and relay configurations
Control Box Specifications
Control Box Specifications
• Input Power: 24 VDC
• Output Option 1: Relay
• Output Option 2: 4-20mA Interface box
• Output Option 3: 4 point – 0-5V (dry/wet) Interface box

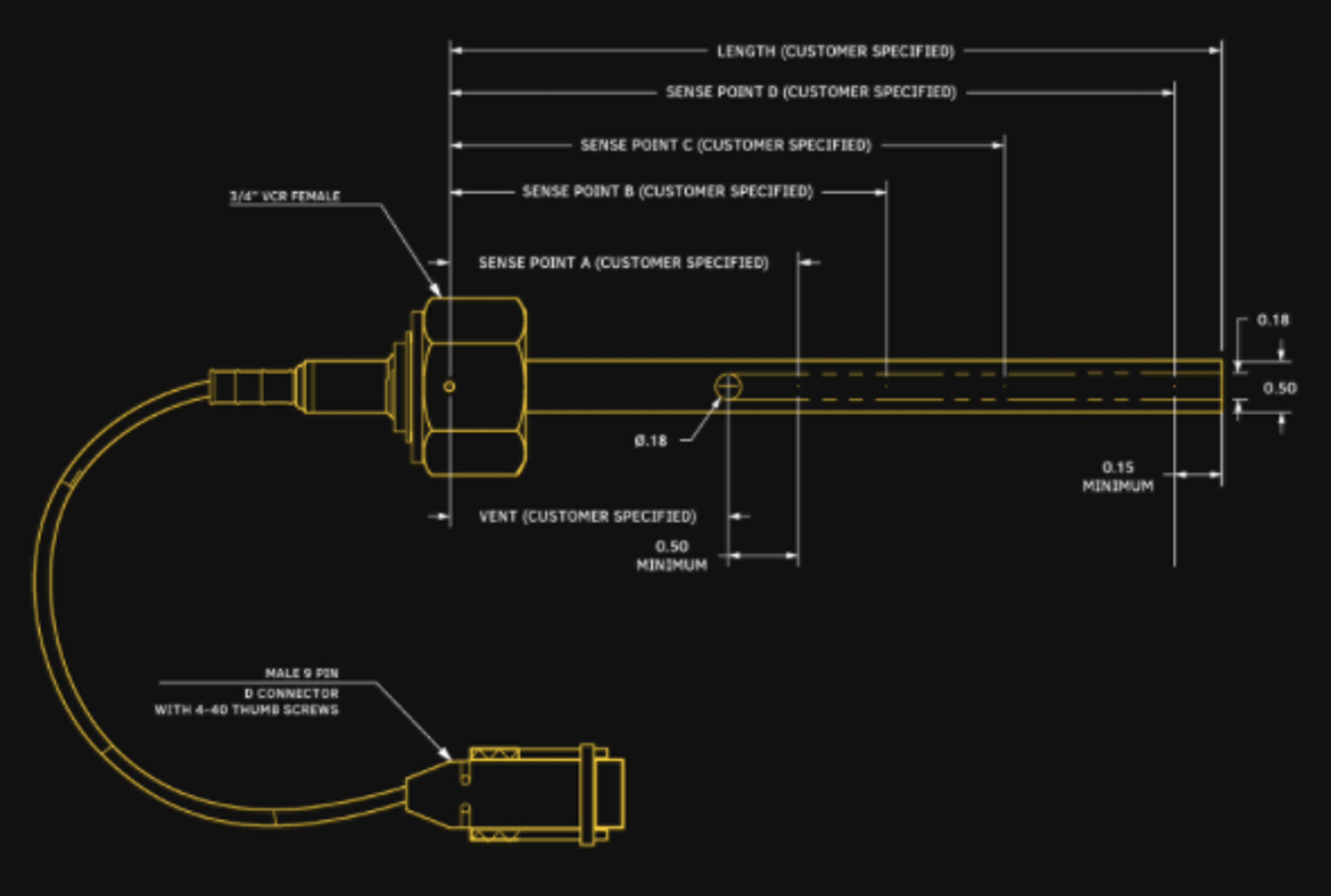

Liquid Level Sensor Specifications
Liquid Level Sensor Specifications
• Probe Diameter: ½” or 3/8” diameter probe
• Mounting: Female ½" or ¾" VCR
• Probe Material (wetted surface): 316L
• UHP surface finish: <10 Ra max electropolished to meet Semi F19 standard
• Pressure Rating: 600 PSI
• He Leak Checked: 1 X 10-9cc sec
• Probe Temperature: -30°C to 100°C (Options up to 200°C)
• Cable Temperature: -30°C to 100°C
• Trigger pt Accuracy: ±1.5mm
• Trigger pt Repeatability: Typical ±0.75mm
Wet Process Options
Wet Process Options
- Wetted surfaces 316 L stainless
- Wetted surfaces electropolished to 10 Ra max
- Pressure rated up to 300 psi
- ±1.5 mm trigger points at each discrete level
- ±0.75 mm is typical repeatability of trigger points
- Lowest trigger point is 0.15” from bottom of sensor
- Customizable setpoints and relay configurations
